What are Flare Fittings?
Flare fittings are a type of mechanical plumbing or hydraulic connection used to join two components or pipes securely, particularly in systems that convey fluids or gases under pressure. These fittings are designed to create a tight seal and ensure a leak-free connection, making them essential in various applications, such as residential and industrial plumbing, automotive brake systems, and refrigeration systems.
Key Features and Components
The key features and components of flare fittings include:
Flare Nut: The flare nut is a key component of a flare fitting. It is a cylindrical metal piece with a threaded interior that screws onto a corresponding threaded pipe or component.
Flare Cone: The flare cone, also known as the flare or flaring end, is a smooth, conical section at the end of the pipe or tubing. It is formed by using a specialized tool to shape the tubing or pipe into the desired flare shape.
Flare Seat: The flare seat is the flat, smooth surface within the flare nut where the flare cone of the tubing or pipe rests. This surface creates a seal when the flare nut is tightened, preventing leaks.
How Flare Fittings Work?
Preparation: To create a flare-fitting connection, the end of the tubing or pipe is cut cleanly and squarely. It is then deburred and smoothed to ensure a proper fit and seal.
Flaring: A flaring tool is used to shape the end of the tubing or pipe into a flared cone shape. This process ensures that the tubing or pipe can properly mate with the flare seat within the flare nut.
Assembly: The flared end of the tubing or pipe is inserted into the flare nut, and the nut is threaded into the corresponding component, such as a valve or another pipe.
Tightening: As the flare nut is tightened, it compresses the flared end of the tubing or pipe against the flare seat, creating a strong, leak-resistant seal.
Advantages of Flare Fittings
These fittings are commonly used to connect pipes and tubes in a variety of applications, from household plumbing to industrial gas systems. Here are the benefits:
Leak Resistance
One of the primary advantages is their exceptional leak resistance. The flare design creates a strong, dependable seal that minimizes the risk of gas or liquid leakage. This is crucial, especially in gas systems where leaks can have serious safety implications. Unlike some other fitting types that may require additional sealing materials, such as Teflon tape, flare fittings can often provide a secure, leak-free connection without the need for such additives.
Easy Installation
They are known for their ease of installation. They are typically assembled without the need for specialized tools or complex procedures. A basic flare fitting setup consists of two components: the flare nut and the flare fitting itself. This simplicity not only reduces installation time but also minimizes the chances of installation errors, making flare fittings an excellent choice for DIY enthusiasts and professionals alike.
Reusable
Another significant advantage is their reusability. Unlike soldered or glued connections, which often require cutting and replacing components, flare fittings can be disassembled and reassembled multiple times without compromising their integrity. This makes them cost-effective in the long run and ideal for situations where adjustments or repairs are frequently needed.
Wide Range of Applications
They are versatile and can be used in a wide range of applications. They are commonly employed in gas lines for appliances like stoves, water heaters, and furnaces. Additionally, they are suitable for plumbing systems, refrigeration systems, and even automotive brake lines. This versatility makes them a go-to choice for professionals working in various industries.
High-Pressure Tolerance
They are designed to withstand high-pressure conditions. This attribute is particularly valuable in applications where the flow of gases or liquids requires strong, reliable connections. The flared design, with its uniform compression, ensures that the fitting can handle the pressure without compromising safety or performance.
Compatibility with Various Materials
They are compatible with a range of materials commonly used in plumbing and gas systems, including stainless steel, copper, brass, aluminum, and even certain types of plastic tubing. This compatibility enhances their flexibility and makes them adaptable to different project requirements.
Minimal Maintenance
Once installed, they require minimal maintenance. Their robust construction and leak-resistant design mean that they are less likely to develop issues over time, reducing the need for ongoing upkeep. This is a significant advantage for homeowners and businesses looking for reliable, hassle-free solutions.
A Step-by-Step Guide to Installing Flare Fittings
Whether you're a DIY enthusiast or a professional plumber, knowing how to install flare fittings is a valuable skill. Here is our guide to installing these fittings safely and effectively.
Tools and Materials
Before you start the installation process, gather the necessary tools and materials:
Flare fittings (matching the size of your pipes or tubing)
Tubing or pipes
Tubing cutter or hacksaw
Flaring tool
Deburring tool
Adjustable wrenches or flare nut wrenches
Pipe thread sealant (if required)
Safety glasses and gloves
Step-by-Step Installation Guide
Now, let's walk through the installation process for flare fittings:
Step 1. Measure and Cut the Tubing
Measure the length of tubing you need for your project and mark it. Use a tubing cutter or hacksaw to make a clean, square cut at the marked location. Remove any sharp burrs or uneven edges using a deburring tool.
Step 2. Prepare the Flare End
Slide the flare nut onto the tubing, ensuring it faces the flaring end. Place the flaring tool over the tubing's end, aligning it with the desired flare size (usually 45 degrees). Tighten the flaring tool's clamp to secure the tubing in place.
Step 3. Create the Flare
Gradually turn the flaring tool's handle to form a flare on the tubing end. Ensure it's uniform and without cracks or defects. Once the flare is formed, remove the tubing from the flaring tool.
Step 4. Assemble the Flare Fitting
Insert the flared end of the tubing into the fitting body. Hand-tighten the flare nut onto the fitting body, ensuring it's snug but not overly tight.
Step 5. Secure the Connection
Use an adjustable wrench or flare nut wrench to further tighten the flare nut onto the fitting body. Be careful not to over-tighten, as this can damage the flare.
Step 6. Test for Leaks
Once the connection is secure, pressurize the system (if applicable) and check for leaks. Use a soap and water solution to detect any escaping gas or liquid. If you see bubbles, there's a leak that needs to be addressed.
Step 7. Finalize the Installation
If required, apply pipe thread sealant to the threads of any threaded connections in the system. Ensure all connections are secure, and no leaks are present.
Step 8. Complete the Project
Once you've verified the connections are leak-free and secure, you can complete your plumbing or gas project as needed.
Essential Tips to Consider Before Buying Flare Fittings
Choosing the right flare fittings is essential to ensure the safety and efficiency of your system. To help you make an informed decision, here are essential tips to consider before buying these fittings.
Know Your Application
Before purchasing flare fittings, it's essential to understand the specific requirements of your application. Different systems, such as water, gas, or refrigeration, may require specific ones designed to handle varying pressure levels and temperatures.
Material Matters
They are available in various materials, including brass, stainless steel, and copper. The material you choose should be compatible with the fluids or gases in your system and resistant to corrosion. Stainless steel, for example, is ideal for corrosive environments, while brass is suitable for general-purpose applications.
Size and Compatibility
Size matters when it comes to flare fittings. Ensure that the fittings you choose are compatible with the pipe size and type you're working with. This includes both the outside diameter (OD) and the thread size.
Check for Certifications
Look for fittings that meet industry standards and certifications. For example, fittings approved by relevant organizations, have been tested, and certified for safety and reliability.
Consider Pressure Ratings
Check the pressure ratings to ensure they can handle the pressures your system will experience. Select fittings with a higher pressure rating than your application requires to provide a safety margin.
Proper Thread Type
These fittings come with different thread types, such as NPT (National Pipe Thread) and SAE (Society of Automotive Engineers). Ensure that the threads match the threads on your pipes and components to ensure a proper seal.
Flare Nut
They consist of a flare nut and a cone-shaped fitting. The nut is crucial for creating a tight seal. Make sure it's of the same material as the fitting and properly sized for your application.
Consider the Angle

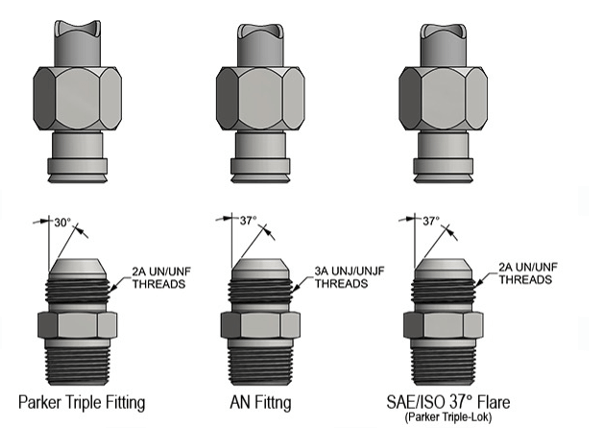

Flare fittings are available in various angles, with 45 and 37 degrees being the most common. The angle you choose should match the specifications of your system. The 45-degree flare is typically used in automotive applications, while the 37-degree flare is more common in plumbing.
Invest in Quality Tools
To ensure a proper installation, invest in quality flaring tools. A well-made flaring tool will create consistent, leak-free flares, reducing the risk of system failures.
Follow the Installation Instructions
Finally, always follow the manufacturer's installation instructions carefully. Proper installation is crucial to prevent leaks and ensure the long-term performance of your flare fittings.
